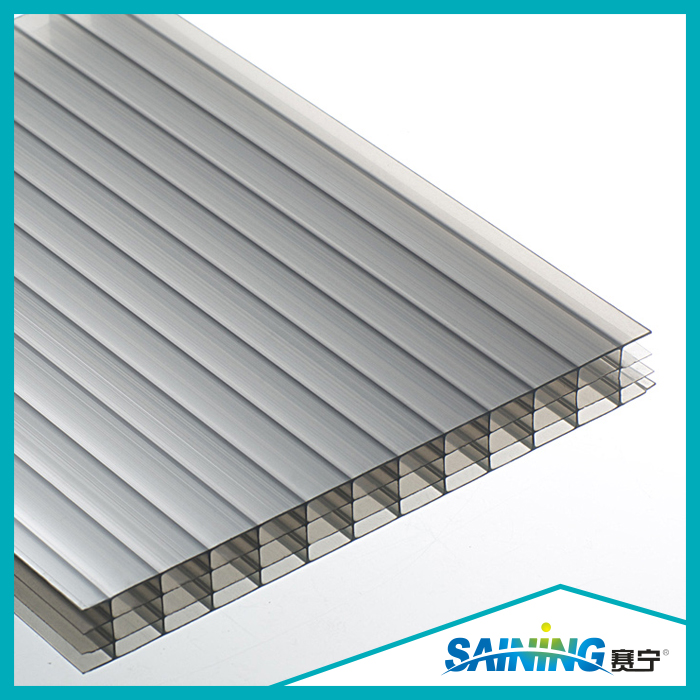

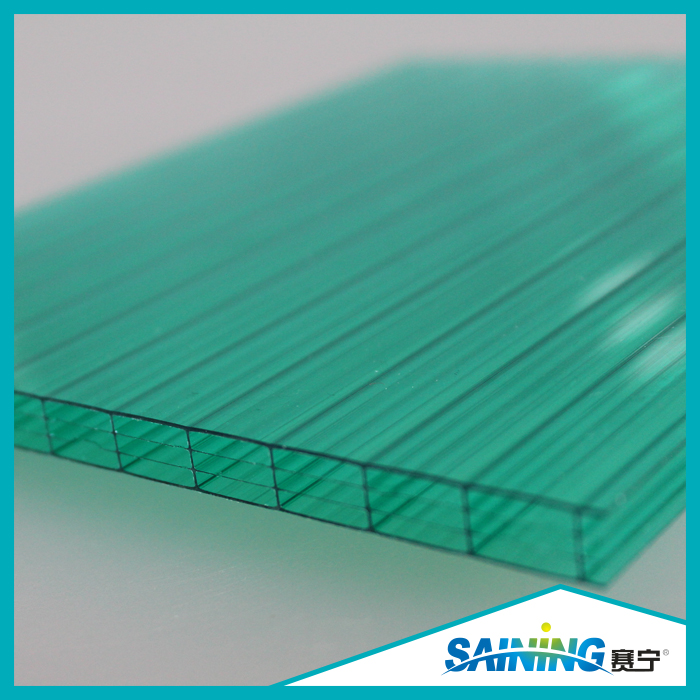

Product description Polycarbonate four-wall sheet
Product Standard & Technical Parameters Product Standard Conventional Color : transparent, blue-green, ight-green, blue, light-opal, bronze(brown), etc.
|Thickness(mm) ||Weight(kg/m2) ||Mini-bending |
|Transparency(%) ||K value(W/M2·k) |
|8 ||1.7 ||2400 ||71 ||2.56 |
|10 ||2.0 ||3000 ||71 ||2.39 |
|12 ||2.2 ||3600 ||70 ||2.30 |
|14 ||2.4 ||4200 ||69 ||2.10 |
|16 ||2.7 ||4800 ||68 ||2.00 |
|18 ||3.0 ||5400 ||66 ||1.88 |
|20 ||3.3 ||6000 ||63 ||1.69 |
| Impact strengh ||Transparency ||Specifc grevity ||Coefficient of thermal expansion ||Service temperayure ||Heat conductivity |
|2.1j/m-2.3j/m ||40%-80% ||1.2g/cm³ ||0.065mm/m°C ||-40°C—120°C ||3.0-3.9w/m²°C |
|Tensile strengh ||Flexural strengh ||Modulus of elasticity ||Effect of sound insulation ||Tensile stress at break ||Elongation at break |
|≥60N/mm ||100N/mm² ||2400Mpa ||10mm two laminates reduced 10db ||≥65Mpa || >100% |
Main Products Click below to choose your desired product categories
Generally 15 working days after the order confirmed Packaging
1) Custom package request is appreciate.
2) Standard package: Both Sides Covered With PE Film
FAQ 1. Are you manufacturer or Trade Company?
We are professional factory, founded in 1996.OEM is acceptable
2. What's the order process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Customization--- We offers ultimate customization and personalized solutions.
d. Sample ---Standard sample of our factory.
e. Payment terms--- T/T 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
3. What terms of payment you use?
T/T, PayPal, Western Union
4. Do you have any instant chat tool?
Skype: saining-daisy, polycarbonate_sheet
What app: saining-dasiy
Welcome to >> Hangzhou Saining Polycarbonate Sheet Co.,Ltd.
Contact us if you need more details on Four Walls Hollow polycarbonate sheet
. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Four Walls Hollow Polycarbonate Sheet、Four Walls Hollow Polycarbonate Sheet. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Hollow polycarbonate sheet > Four wall polycarbonate sheet
